Description

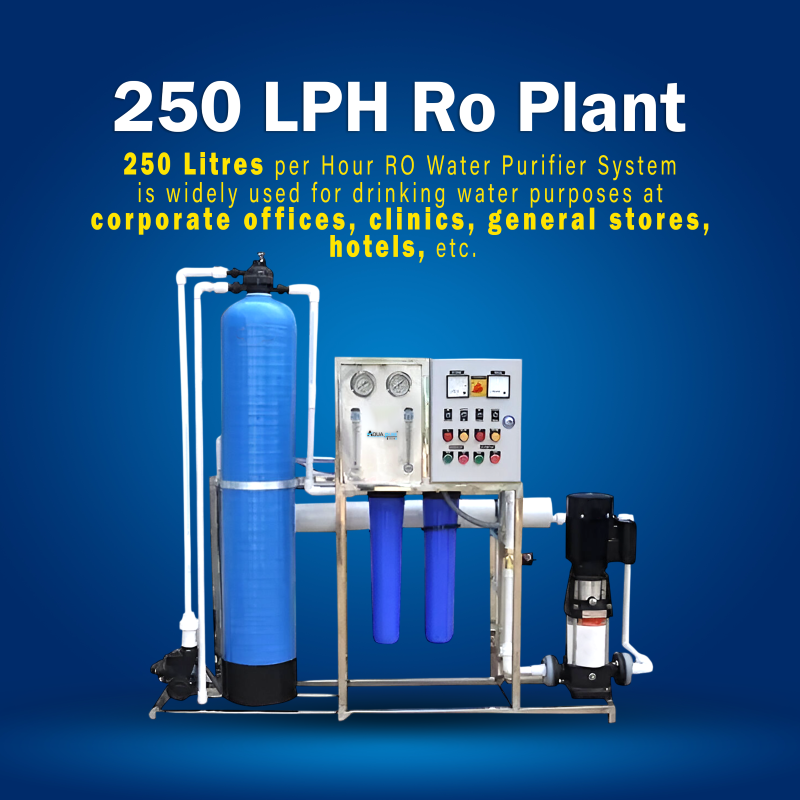

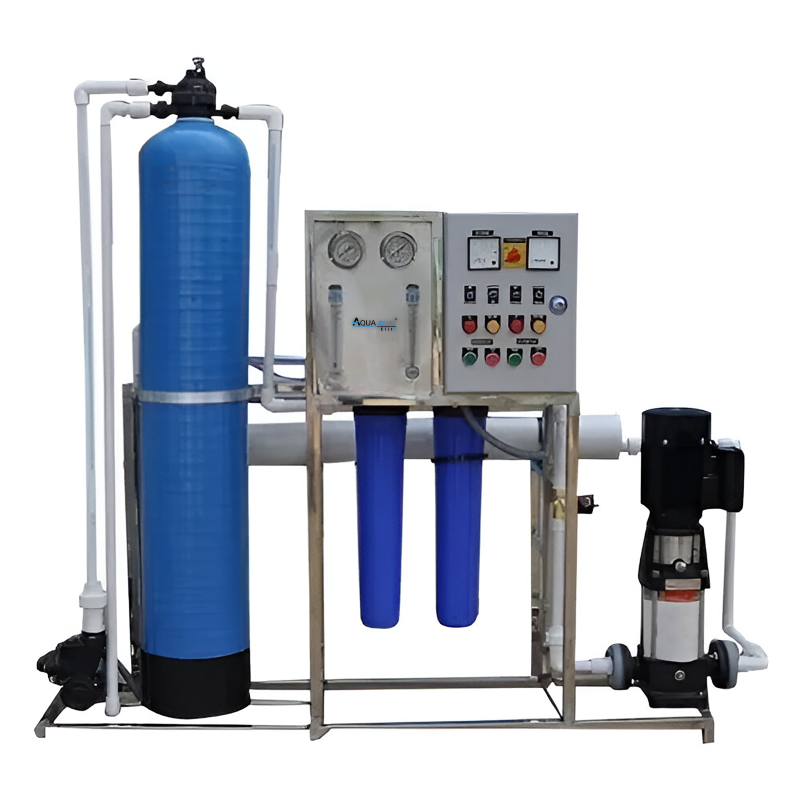

The 250 LPH Industrial RO Plant is engineered for commercial applications requiring consistent, high-quality purified water. Designed to treat feed water up to TDS 200 ppm and hardness 550 ppm, this system integrates advanced filtration, dosing, and RO purification technologies to ensure long-term performance and reliability.
| 250 LITERS RO PLANT | |||
|---|---|---|---|
| Feed Pump | Model | 250 LTWHR | |
| Motor | 0.5 HP (CRI) | ||
| Water Parameters | TDS 200 PPM, Hardness 550 PPM | ||
| Nos Offered | 01 No | ||

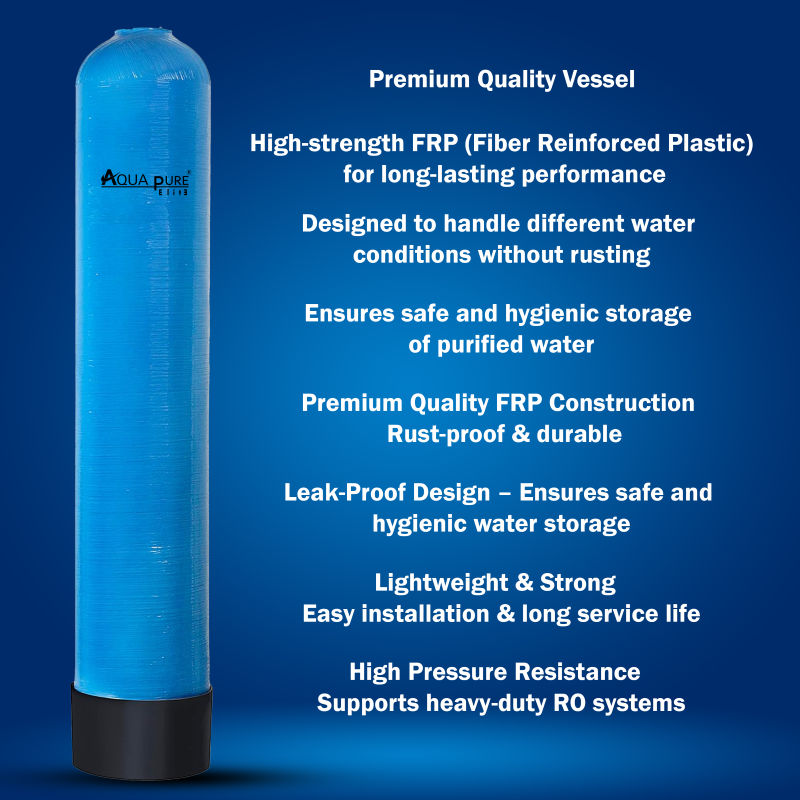

| Pressure Sand Filter & Activated Carbon Filter | Model | 1054 | |
| Media Volume | 100 Litres | ||
| Material of Construction | FRP Housing | ||
| Max Flow Rate | 6 m³/hr @ 0.35 kg/cm² (via Automatic Multiport Valve) | ||
| Dosing Pump | Capacity | 0 to 5 LPH | |
| Chemical | Anti-scalant | ||
| Tank Capacity | 100 Litres | ||
| Make / Nos Offered | E-Dose / 1 No | ||
| Micron Filter | Capacity | 1000 LPH | |
| Filter Size | 5 Micron | ||
| Housing | Polypropylene | ||
| Reverse Osmosis Skid | Model | RO 250 | |
| Product Water | 250 Ltr/hr | ||
| Inlet Feed Water | 750 Ltr/hr | ||
| Motor | 1.5 HP (CRI) | ||
| RO Pressure Tube | 4 inch Dia, 1 Element — FRP | ||
| MOC | SS | ||
| RO Membrane | Model | AG 4040 | |
| Make | UNIVERSE | ||
| Nos Offered | 1 No | ||
| PLC-Based Control Panel | Auto Flushing with Solenoid Valve | ||
| Treated Water Level Monitoring | |||
| Raw Water Level Monitoring | |||
| Single Phase Preventer | |||
| Overload Protection | |||
| Panel Mounted Indications | |||
| Trouble Indication (LED Display) | |||
| Low Level Switch (Pump Protection) | |||
| Digital Conductivity Meter | |||
| Reject Pressure Gauge | |||
| Water Level Controller | |||
| Dry Running Protection | |||
